Aluminium U Channel for Glass Fence Railing , Aluminium Channel for 8mm Glass
Item Detail:
| Name: | Aluminium U Channel |
| Size: | 25*16.8MM |
| Weight: | 0.494kg/m |
| Material: | 6005, 6063, 6061, etc. |
| Surface Treatment: | silver anodizing |
| Coating Thickness: | 10 - 15 um |
| Length: | 1 - 6 M |
| Standard: | EN 755,CB/T 6892,SGS |
| Certification: | ISO/TS16949 : 2009 |
| Deep Processing: | cutting,drilling,punching,etc |
Material:
Aluminium Alloy: 6063, 6061, 6005, 6060 Thermal Treatment: T5, T6
| Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Impurity | Al |
| Unit | Total |
| 6063 | 0.2-0.6 | <0.35 | <0.1 | <0.1 | 0.45-0.9 | <0.1 | <0.1 | <0.1 | <0.05 | <0.15 | Surplus |
| 6061 | 0.4-0.8 | <0.7 | 0.15-0.4 | <0.15 | 0.8-1.2 | 0.04-0.35 | <0.25 | <0.15 | <0.05 | <0.15 | Surplus |
| 6005 | 0.6-0.9 | <0.35 | <0.1 | <0.1 | 0.4-0.9 | 0.1 | <0.1 | <0.1 | <0.05 | <0.15 | Surplus |
| 6060 | 0.3-0.6 | 0.35-0.6 | 0.1-0.3 | <0.1 | <0.1 | <0.15 | <0.05 | <0.1 | <0.05 | <0.15 | Surplus |
Section shape:
I, U, T, C, Z, L, H, square, round, flat, hollow, t-slot, and other complicated shapes by custom design.
Surface treatment:
Mill finish/ Anodizing/ Sand blasting / Powder Coating / Electrophoresis / PVDF Coating / Wood grain.

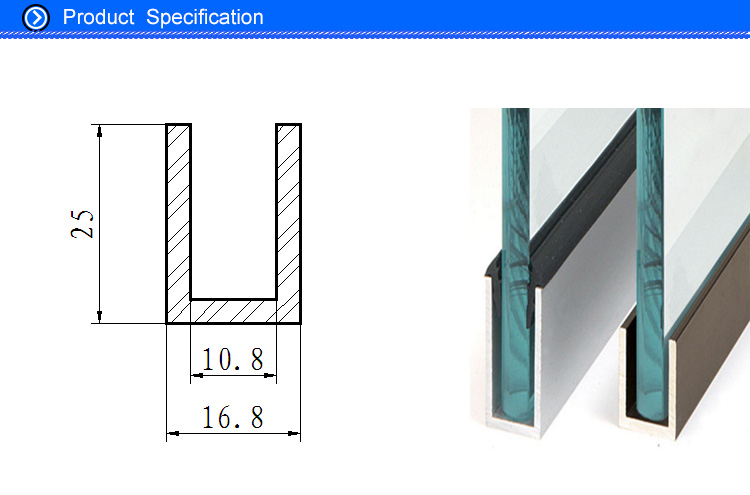

Product Drawing:
FAQ:
Question1: What’s the thickness for anodizing? Can you do 15um?
A: Our normal thickness is about 10 um. Yes, we can do 15um and above.
Question2: What color you can do for powder coating? What about the thickness?
A: We can do any color for powder coat as long as you can provide the color
sample. Our normally powder coating thickness is 60-80um.
Question3: What certification do you have? What’s your standard?
A: We have ISO / TS 16949:2009, SGS & ROHS certification.
Our standard is DIN, AAMA, AS/NZS, China GB.
Question4: What’s the payment terms?
A: Usually by T/T, 30% deposit and the balance paid before shipment.
