Mill Finish 90 Degree Aluminium Angle Profile with Punching Hole for Rooftop Solar Mounting Bracket Part
Product Description:
1. Name: aluminium angle profile
2. Size: 38*38MM
3. Weight:1.28kg/m
5. Material: 6005, 6063, 6061, etc.
6. Coating Thickness: 10 - 15 um
7. Length: as customer's requirement
8. Standard: EN 755,CB/T 6892,SGS
9. Certification: ISO/TS16949 : 2009
10. Deep Process: cutting,drilling,punching,etc
Two types:
(1) 90°-Angle
(2) 45° -Angle
Suface Treatment:
(1). Anodizing:(Clear,silver,golden,bronze,other muiticolar.)
(2). Electrophoresis
(3). Powder coating,mill finish,PVDF,sandblasting,etc
Package:
Foam paper and carton box package, craft paper package, plastic film and the plastic wrap.
All the specification and packing details can according to customer's request
Specifications:
| Business type: | Manufacturer |
| Standard: | GB 5237-2008 / En 755.2 |
| Product series: | Aluminium profile for angle parts |
| Surface treatment: | Anodizing, Powder coating, electrophoresis, wooden finish |
| Packing: | Kraft paper, EPE foam, Shrink film, Composite paper |
| Payment term: | T/T, L/C at sight |
| Specification: | A. Alloy code 6063, 6060, 6061, 6005, 6082 |
| B. State: T4 / T5 / T6 |
| C. Length: 1m-7m |
| D. Normal Anodizing thickness: 8-15 micro |
| E. Normal powder coating thickness: 60-100 micro |
| F. Tensile strength: ≥ 160 mpa |
| G. Yield strength: ≥ 110 mpa |
| H. Extensibility: ≥ 8% |
| I. Hardness(HW): ≥ 8 |
| Normal order process: | 1. Confirm the drawings, colors and price;
2. Make the payment of 30% deposit
2. Start to make mould;
4. We send samples for your confirmation;
5. Mass production and delivery; |
| Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | impurity | Al |
| 6063 | 0.2 | 0.35 | 0.1 | 0.1 | 0.45-0.9 | 0.1 | 0.1 | 0.1 | 0.15 | Rest |
| 6061 | 0.4-0.8 | 0.7 | 0.15-0.4 | 0.15 | 0.8-1.2 | 0.04-0.35 | 0.25 | 0.15 | 0.15 | Rest |
| 6060 | 0.3-0.6 | 0.1-0.3 | 0.1 | 0.1 | 0.35-0.6 | - | 0.15 | 0.1 | 0.15 | Rest |
| 6005 | 0.6-0.9 | 0.35 | 0.1 | 0.1 | 0.4-0.6 | 0.1 | 0.1 | 0.1 | 0.15 | Rest |
2) Mechanical property
| Alloy | Temper | Tensile strength | Yield strength | Elongation |
| 6063 | T5 | ≥160Mpa | ≥110Mpa | ≥8% |
| T6 | ≥205Mpa | ≥180Mpa | ≥8% |
| 6061 | T6 | ≥265Mpa | ≥245Mpa | ≥8% |

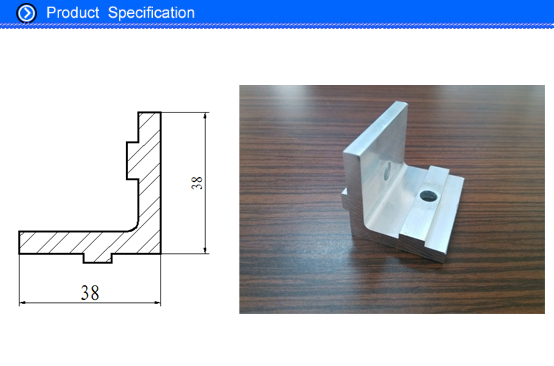

Cross-section:
Processing Workshop Pic:
